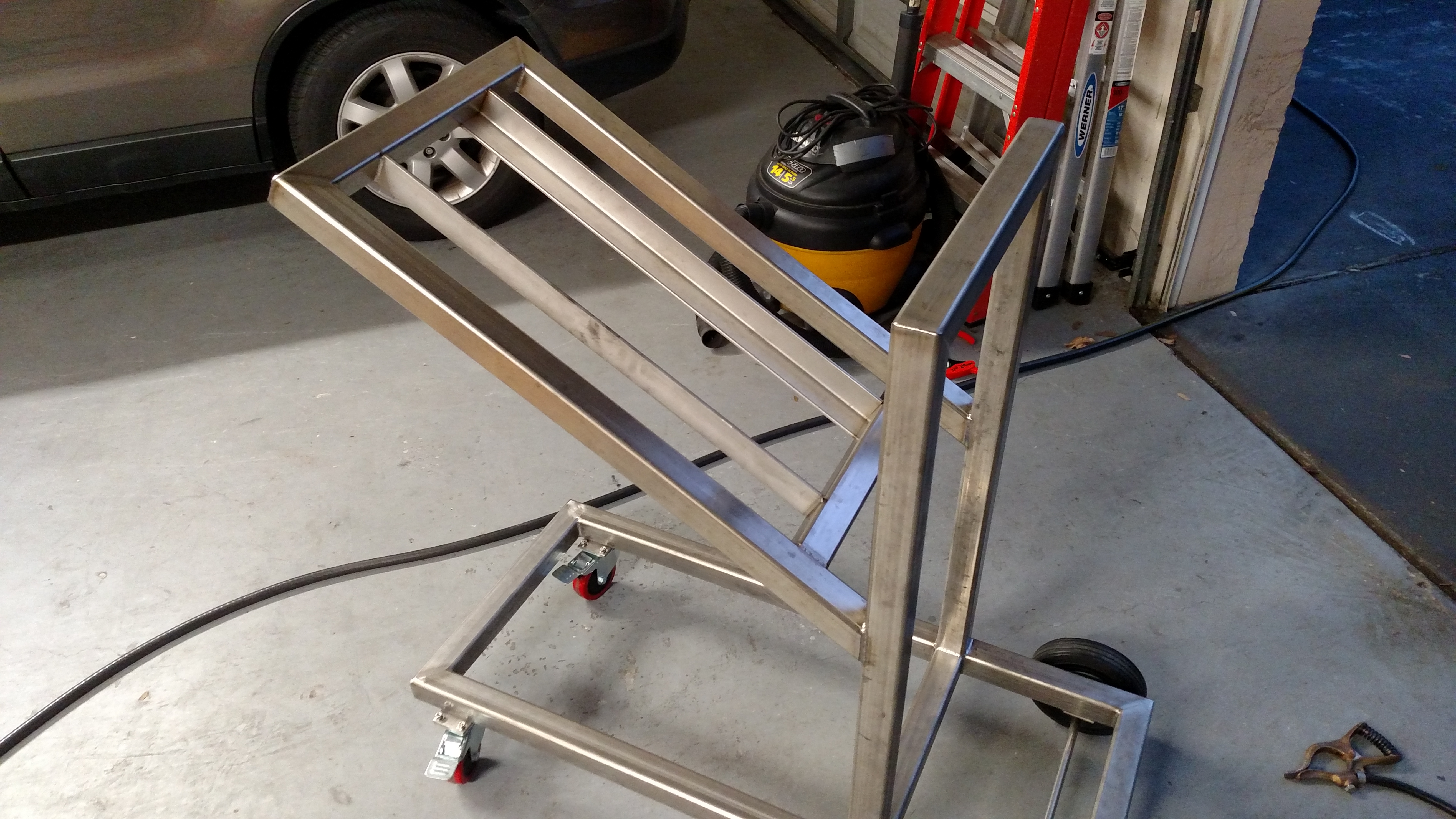

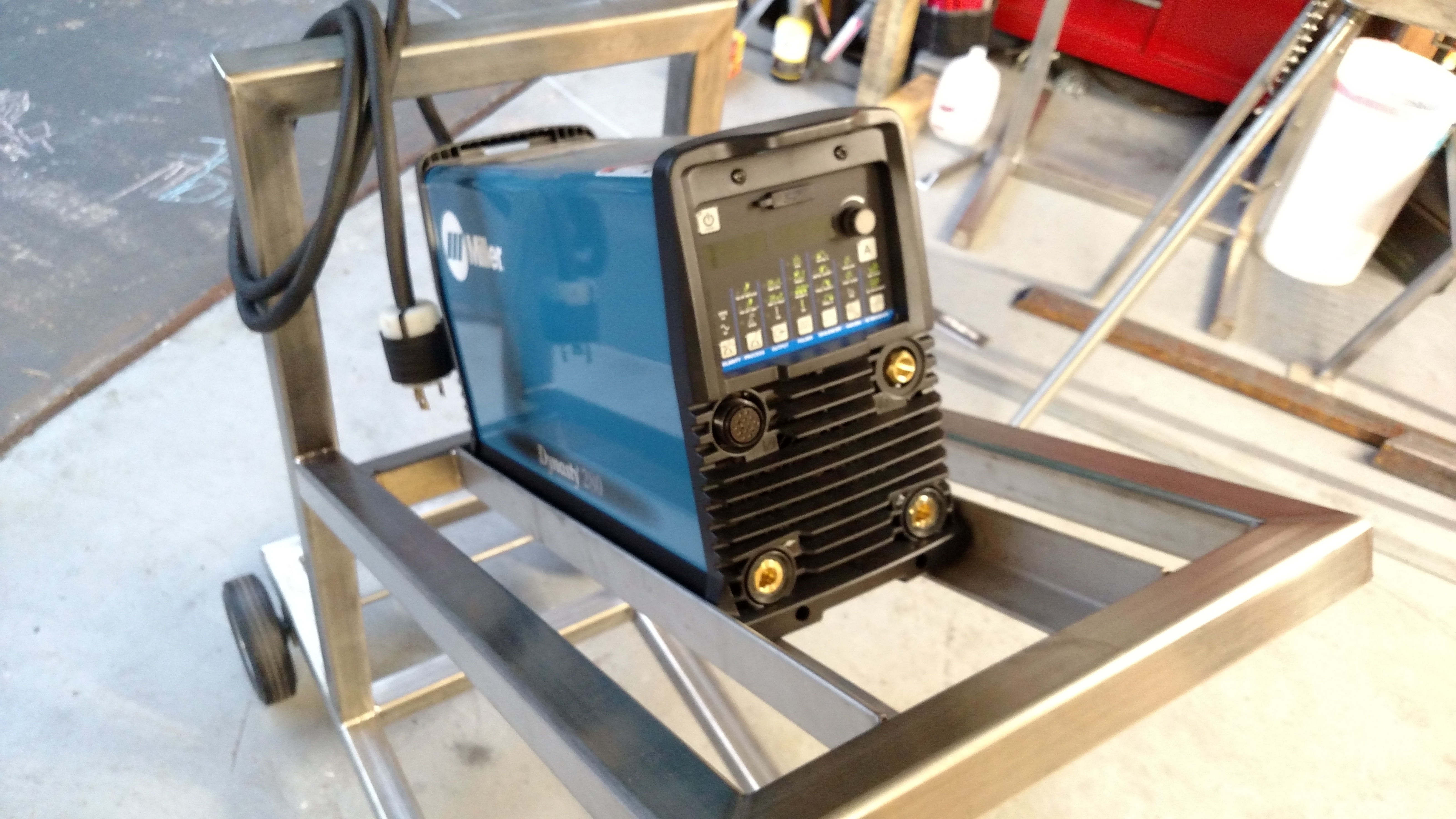

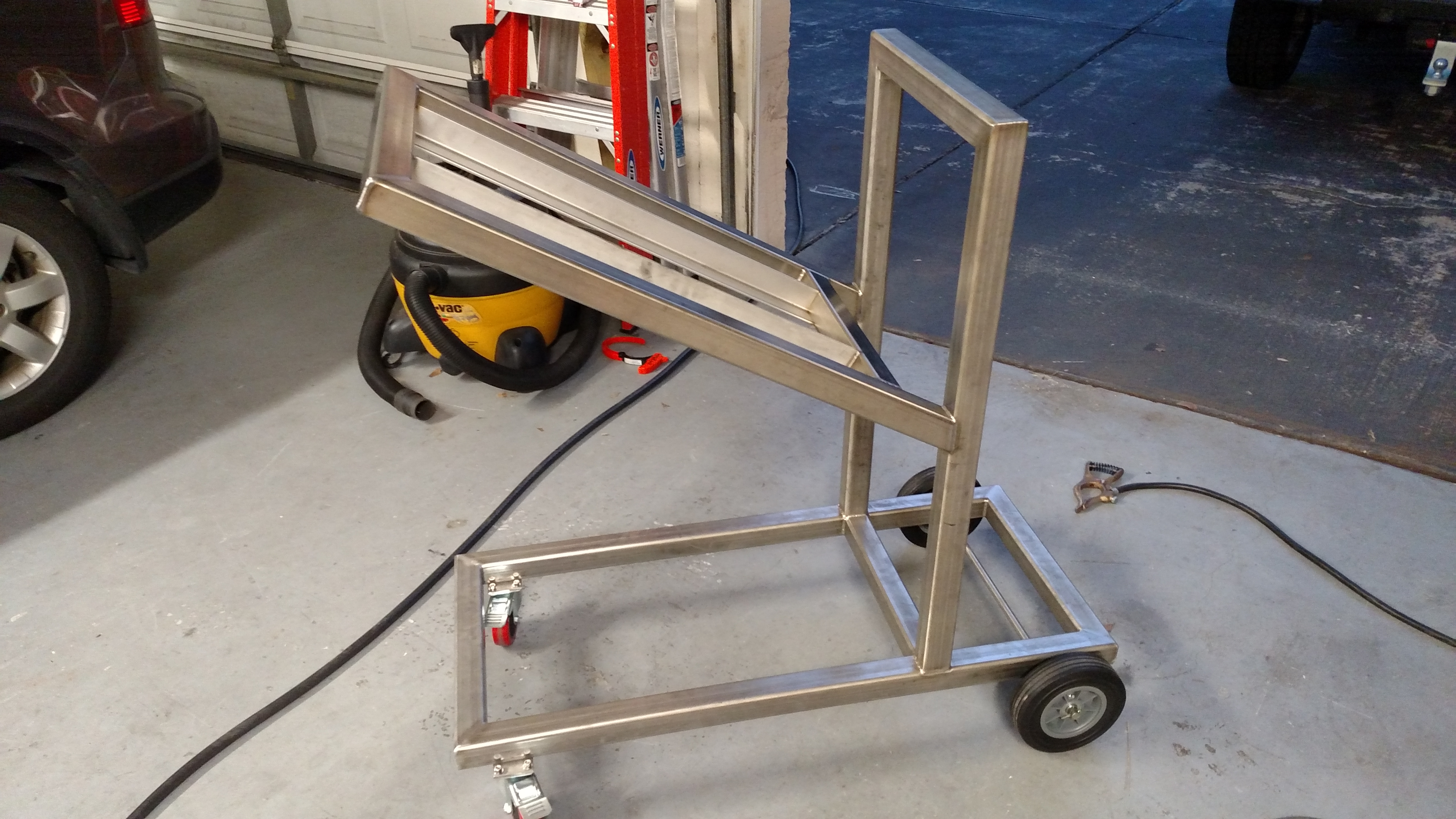

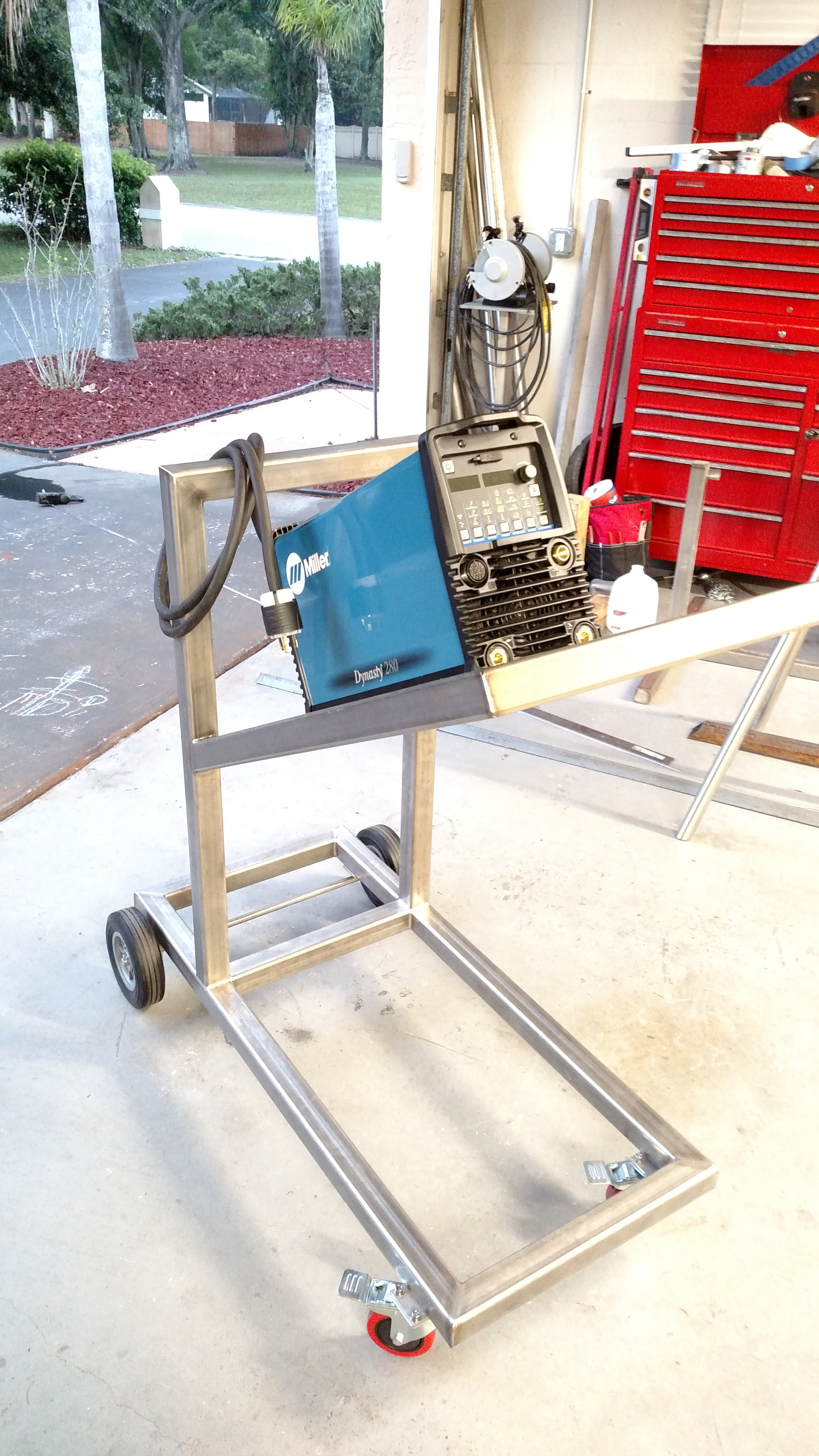

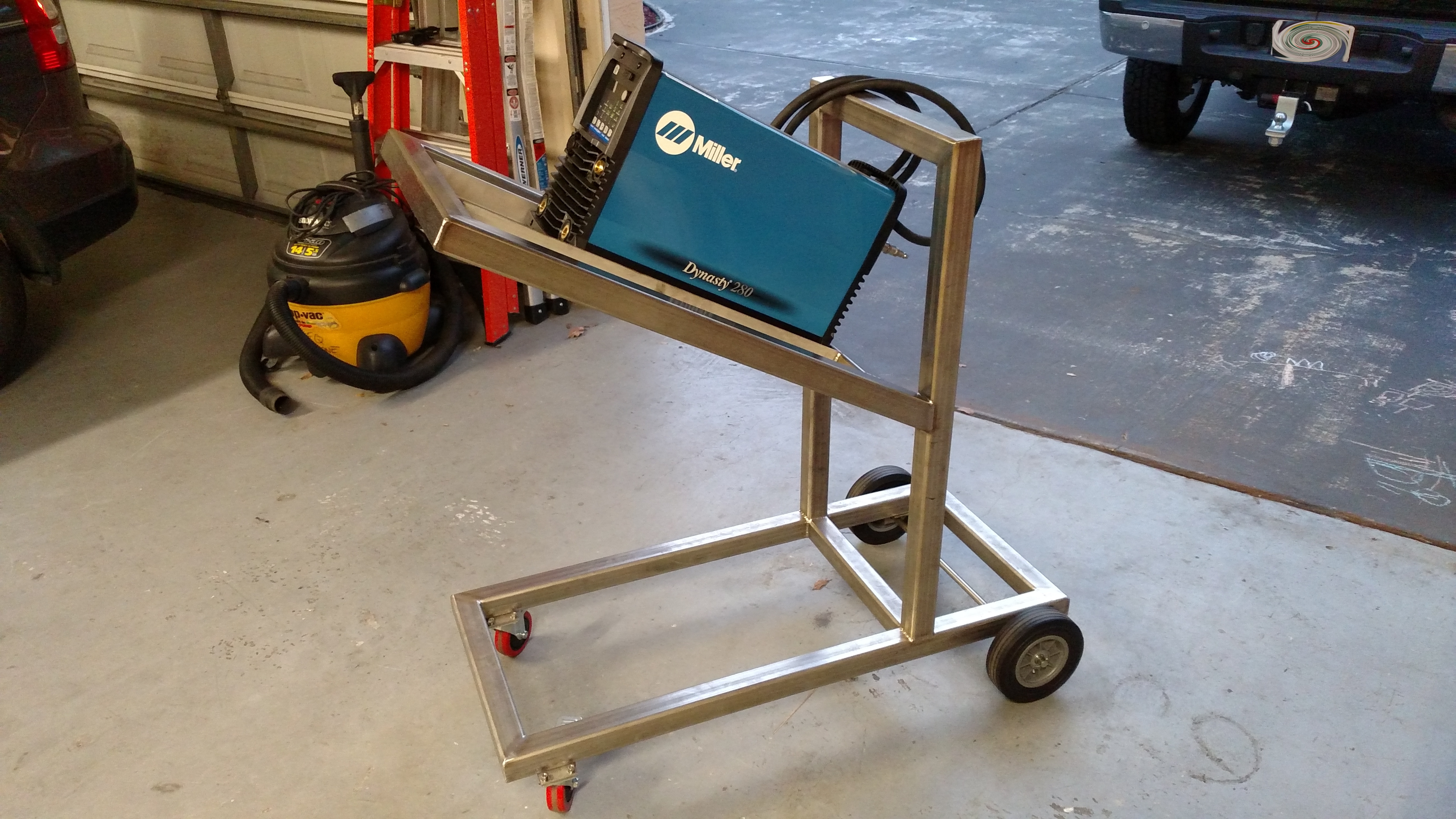

    Been busy enough since I bought my Dynasty 280 DX in January that I have nor made a custom cart for it yet. With scrap and drops from work, and a few extra pieces bought to make up the rest I completed it this morning and am happy with it.

    Not finished yet, but will accommodate a full 330 CF bottle on the back and custom water cooler pump/motor/etc on the bottom.

    Wheels are from Tractor supply, axle is 5/8" solid round stock. The frame is all 2" square 7 gauge.




    Stainless process piping - welder & fitter

    Miller Dynasty 280DX
    Jet band saw
    Dewalt chop saw
    Assorted IR air tools and Metabos
